Sigma Mixer

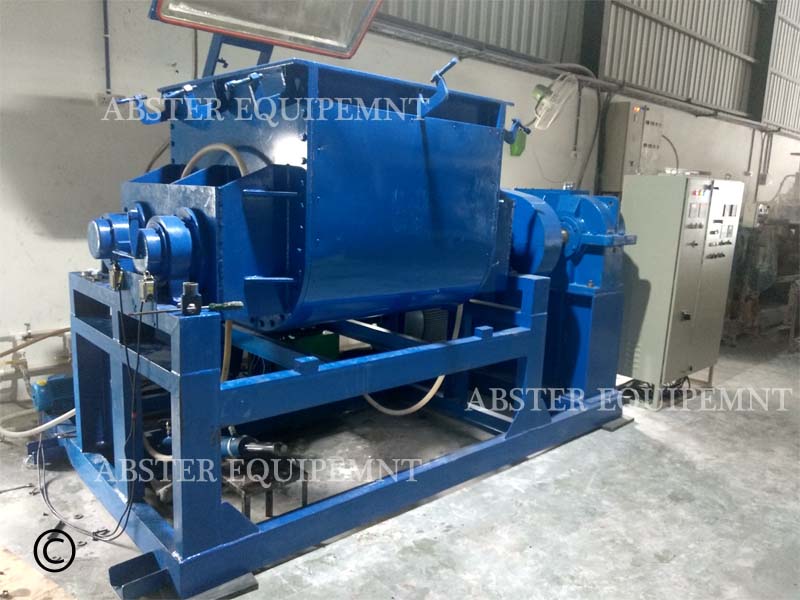

BMC/DMC Sigma Mixer
1. Working Principles:
Kneader is used to knead, mix, crush, disperse and re-polymerize high viscosity paste or elastoplastic materials, which can not be processed by the general powder mixers and liquid blenders.

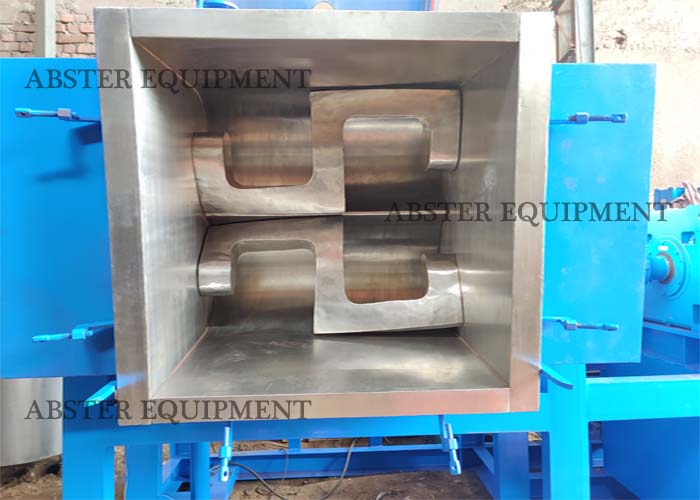

Kneader is the ideal equipment for all kinds of chemical products and has the merits of stirring evenly, kneading efficiently and no dead corner. The materials are scraped, stretched, folded and squeezed among the blade, slot wall, and ridge-like protrusions.
The materials cycle from one end of the impeller to the other. The two mixing paddles are tangent and spin at different speeds to complet the kneading process. Tilt the solt to discharge the materials.
2. Uses:
Kneader is widely applied to produce high viscosity sealant, silicone rubber, neutral and acidic glass cement, chewing gum, bubble gum, paper pulp, cellulose, and is also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics and other industries.
3. Category:
There are four kinds of Kneaders: Vacuum kneader, pressure kneader, atmospheric pressure kneader and high temperature kneader. It has three ways of discharging: Hydraulic turning cylinder pumping type, ball valve type and screw extrusion type.
4. Characteristics:
Control and record the temperature, time, viscosity and other relevant data through the PLC in real time during production.
The parts of the cylinder and the blade that contact with the materials are made of stainless steel, to ensure product's quality.
The kneader can be used for the high-viscosity paste or plastic solid with poor mobility around 5000PA. S, and the jacket can be heated or cooled by the heat transfer oil or water. According to the special needs, the plant can be designed to operate in a vacuum. The speed difference between the biax is 7.52r/min, so that the material is constantly changed, fastly mixed and has a larger transfer area for unit volume.
5. Notes:
(1) Our company can design the equipment according to user's specific requirements.
(2) For the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
(3) If you are not certain of which type to choose, please call us and our profession sales engineers will recommend for you.
6. The main technical parameters:
Kneader is used to knead, mix, crush, disperse and re-polymerize high viscosity paste or elastoplastic materials, which can not be processed by the general powder mixers and liquid blenders.
Kneader is the ideal equipment for all kinds of chemical products and has the merits of stirring evenly, kneading efficiently and no dead corner. The materials are scraped, stretched, folded and squeezed among the blade, slot wall, and ridge-like protrusions.
The materials cycle from one end of the impeller to the other. The two mixing paddles are tangent and spin at different speeds to complet the kneading process. Tilt the solt to discharge the materials.
2. Uses:
Kneader is widely applied to produce high viscosity sealant, silicone rubber, neutral and acidic glass cement, chewing gum, bubble gum, paper pulp, cellulose, and is also used in batteries, ink, pigments, dyes, pharmaceuticals, resins, plastics, rubber, cosmetics and other industries.
3. Category:
There are four kinds of Kneaders: Vacuum kneader, pressure kneader, atmospheric pressure kneader and high temperature kneader. It has three ways of discharging: Hydraulic turning cylinder pumping type, ball valve type and screw extrusion type.
4. Characteristics:
Control and record the temperature, time, viscosity and other relevant data through the PLC in real time during production.
The parts of the cylinder and the blade that contact with the materials are made of stainless steel, to ensure product's quality.
The kneader can be used for the high-viscosity paste or plastic solid with poor mobility around 5000PA. S, and the jacket can be heated or cooled by the heat transfer oil or water. According to the special needs, the plant can be designed to operate in a vacuum. The speed difference between the biax is 7.52r/min, so that the material is constantly changed, fastly mixed and has a larger transfer area for unit volume.
5. Notes:
(1) Our company can design the equipment according to user's specific requirements.
(2) For the fast update of the technology, we will change the technical data without notice, and the right parameters are subject to the real product.
(3) If you are not certain of which type to choose, please call us and our profession sales engineers will recommend for you.
6. The main technical parameters:
| Type | SM-5 | SM-10 | SM-100 | SM-300 | SM-500 | SM-1000 | SM-1500 | SM-2000 | |
| Volume(L) | 5 | 10 | 100 | 300 | 500 | 1000 | 1500 | 2000 | |
| Stirring Paddle Rotation Speed(rpm) | 33 23 | 33 23 | 35 22 | 37 21 | 37 21 | 35 25 | 30 16 | 30 16 | |
| Main Motor Power(kw) | 0.75 | 1.1 | 3-7.5 | 11-30 | 15-37 | 22-90 | 22-90 | 30-110 | |
| Heating Methods | Steam: Pressure(MPa) | 0.3 | |||||||
| Electric: Power (kw) | 1 | 1 | 4 | 9 | 16.2 | 27 | 32.4 | 40 | |
| Vacuum(MPa) | -0.094 (Vacuum Kneader) | ||||||||
| Pressure(MPa) | 0.45 (Pressure Kneader) | 0.35 (Pressure Kneader) | |||||||
| Weight(kg) | 300 | 400 | 1250 | 1600 | 3000 | 4500 | 5800 | 6500 | |
