Alkyd Resin Pilot Reactor

Alkyd Resin reactor

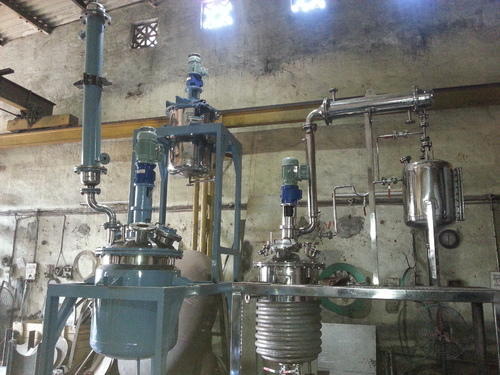

Alkyd Resin Pilot Reactor plant

Resin Reactor Pilot Plant

*Chemical Pilot Reactor

This equipment is including: Reaction vessel, mixing system, vacuum system, condenser, separator, conduction oil preheating system, platform 1.Capacity 5L-200L.

2.Including jacketed reactor,condenser,storage tank,conduction oil preheating tank,hot oil pump,pipelines,valves,temperature gauge PT100,pressure gauge,platform etc.

3.Made of SUS316L and SUS304.

4.Heating and cooling by jacket or heated by jacket and cooling by inner pipe coil

*Model selection reference of reaction kettle
Composition Instructions
Specification (L) 5-200
Design Pressure (Mpa) Atmospheric Pressure or under pressure
Material Carbon steel, stainless steel, enamel, graphite
Heating Forms Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.
Cooling Forms Refrigeration medium in the internal pipe jacket
Blending Power Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.
Stirring blade FormsAnchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
SealMechanical seal or stuff packing seal
Inner Surface TreatmentPolished or no polished
Discharge ValveFlanged ball valve, open downward discharge valve and others
Technological Pipe HoleManhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,

Reactor parameters:



Specifications

Effective volume (L)

Heating

Heating(colding)structure

Shaftseals

Remarks

>FYF-50L

>50

HTF


>Electric heating


Steam

>
>Hot water

>Jacket

>
>Outside the half-pipe


>The coil

>Single mechanical seal

>
>Double mechanical seal


>Packing



1. the motor power size, stirring speed level determined according to

   actual requirements.
2. the thickness of the cylinder pressure to be based on response.









>FYF-100L

>100

>FYF-200L

>200

>FYF-300L

>300

>FYF-500L

>500

>FYF-1000L

>1000

>FYF-1500L

>1500

>FYF-2000L

>2000

>FYF-2500L

>2500

>FYF-3000L

>3000

>FYF-4000L

>4000

>FYF-5000L

>5000

>FYF-6000L

>6000

>FYF-8000L

>8000

>FYF-10000L

>10000

>FYF-12000L

>12000

FYF-16000L

>16000

>FYF-20000L

>20000

>FYF-25000L

>25000

>FYF-30000L

300000




*Specification can be changed as per customers requirements
